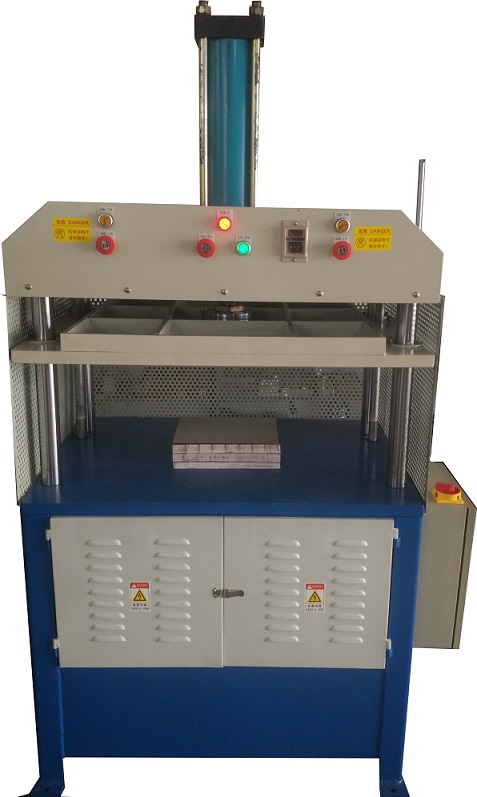

Name: LJ206-12T Hydraulic Pressing Machine
Model: LJ206-12T
Brand: LIJIA
http://player.youku.com/player.php/sid/XNTk4Mzg1MDc2/v.swf
Specifications:
LJ206-12 Single-head Hydraulic pressing machine used for the flatten of the book
block, account books, notebooks, paper etc, to made their bonded firmly and more
flat.
Max pressure is 12T, the movable platen press down through the top installed of
the oil cylinder, put books in the fixed board, It is easy to display and not easy to
tilt. This machine adopts hydraulic mode. The pressure can be adjustment,
books' pressure time is adjustment. With adjustable stroke and holding pressure
when stop and other functions.
It is elegant appearance and simple structure. Also easy to operate. It is one
of the best machine that all need to pressed flat occasions.
As direct factory, we can made the pressing machine in any pressure or pressing
book size as you need.
The Main Technical Parameters:
Name LJ206-12T Single-head Hydraulic Pressing Machine
Model
LJ206-12T
Max.Work Pressure
12T
Working Travel
350mm
Area of Pressing Board
810*650 mm
Book Thickness
30 mm—380mm
Power Requirement
380V，3Phase
電機(jī)功率/Motor Power
3.7kw
Dimensions
L955*W690*H1880mm
Net Weight
800kg
About LiJia Factory:
Established in 2004.
Chang’an Town, Dongguan city, Guangdong province, China
professional producing of post-press finishing manufacturer in China, Our main
products are Hardcover Cashing-in machine, book block rounding machine, Book
corner cutting machine, Book block ridging machine, book pressing machine,
Hydraulic book packing machine, paperboard slitter, paperboard
cross cutter and so on.
Since established, Our Company always adhere of “Best service, Best quality”
the core idea. And strive to bring customers the best quality and best service.
The company development and design's product, like Book Block Rounding
Machine, book block ridge machine, hydraulic cutting two horns machine and
other products are domestic initiative, Has been successfully applied for national
patents, was the best cost-effective in the similar products. Also can make to
order as each kind of machine according to the customer’s requirement.
We will continue to be customer oriented, to the best quality and service to win
the trust of customers and work!
Contact us:
If you have time, we are warely welcome you to visit our company!
Your success is our business!
