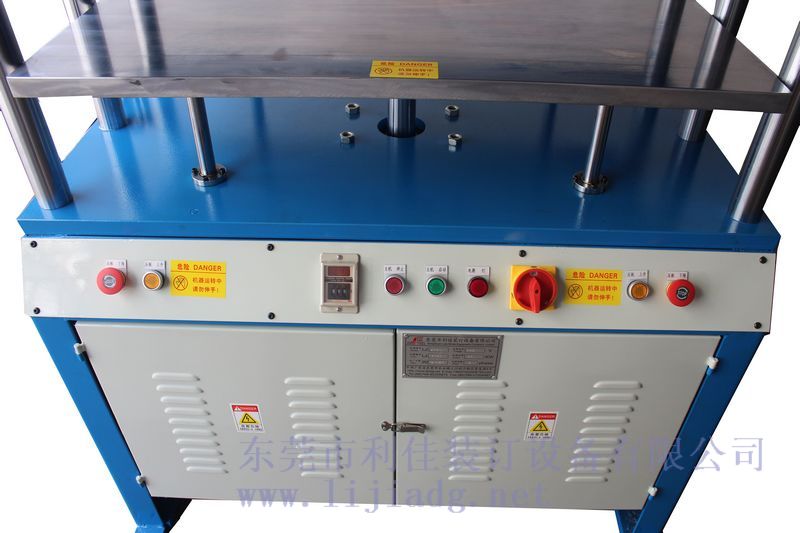

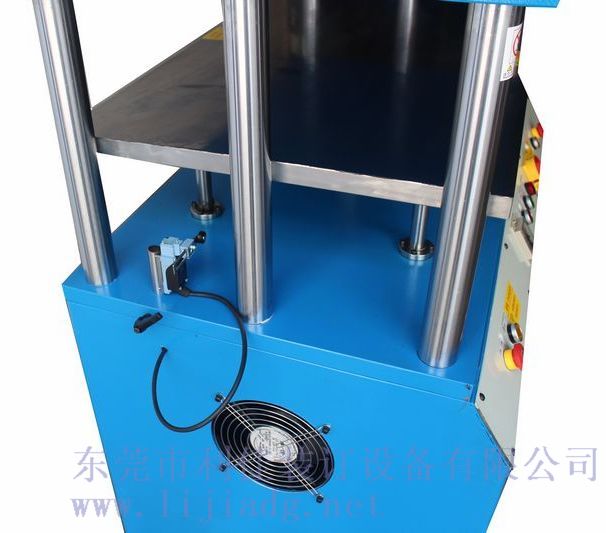

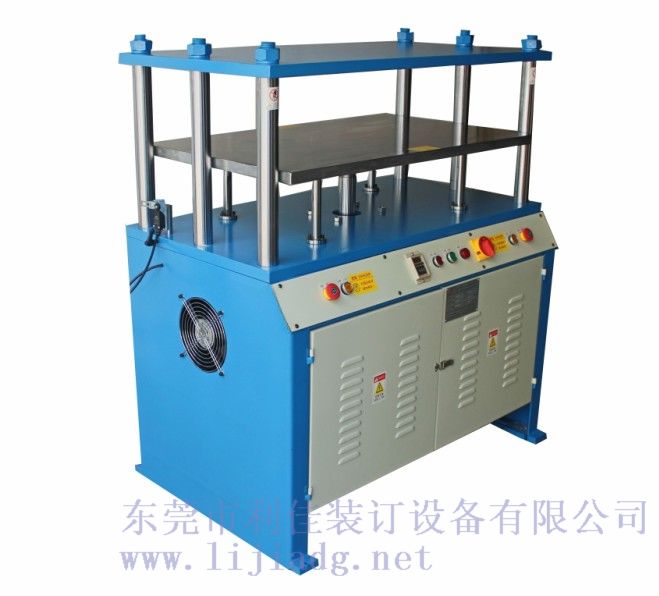

Name: LJ206L Plue Large Pressing Machine

Model: LJ206L

Brand: lijia

Specifications:

LJ206L Plue Large Pressing Machine is suitable for the pressing flatten of the book

block, account books, notebooks, paper etc, to made their bonded firmly and

more flat. because of the large pressing areas, The movable platen rise up and

down through two cylinders, and the flow can be adjustment through  the two

cylinders.

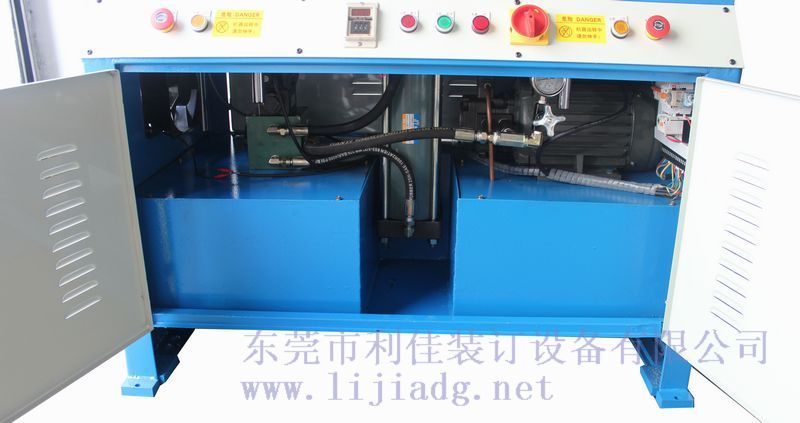

This machine adopts hydraulic mode. The pressure can be adjustment, books'

pressure time is adjustment. With adjustable stroke and holding pressure when

stop and other functions.

The Main Technical Parameters:

Model	LJ206L
Max.Work Pressure	7T
Working Travel	350mm
Area of  Pressing  Board	600*1000 mm
Book Thickness	0mm—350mm
Power Requirement	380V，3Phase
Motor Power	3.7kw
Dimensions	L1130*W670*H1300mm
Net Weight	750kg

About LiJia Factory:

Established in 2004. Dongguan LiJia Binding Equipment Co., Ltd located in

Chang’an Town, Dongguan city, Guangdong province, China. Which is a leading

professional producing of post-press finishing manufacturer in China, Our main

products are Hardcover Cashing-in machine, book block rounding machine,Book

block rounding machine, Book block ridging machine, book pressing machine,

Hydraulic book packing machine, paperboard slitter, paperboard

cross cutter and so on.

Since established, Our Company always adhere of “Best service, Best quality”

the core idea. And strive to bring customers the best quality and best service.

The company development and design's product, like Book Block Rounding

Machine, book block ridge machine, hydraulic cutting two horns machine and

other products are domestic initiative, Has been successfully applied for national

patents, was the best cost-effective in the similar products. Also can make to

order as each kind of machine according to the customer’s requirement.

We will continue to be customer oriented, to the best quality and service to win

the trust of customers and work!

Contact us:

If you have time, we are warely welcome you to visit our company!

Your success is our business!
